3 Ton Spider Crane
Product Overview
The CSHI 3 Ton Spider Crane is our best-selling compact mini crawler crane, specifically engineered for glass curtain wall installation and confined-space indoor lifting projects. Unlike heavy truck cranes that cannot access narrow doorways, elevators and building interiors, this 3-ton spider crane adopts foldable multi-outrigger design and slim tracked body. It can move smoothly inside buildings while maintaining stable lifting capacity.
Equipped with dual power system (diesel engine + 380V electric motor), this 3 ton mini spider crane can work silently indoors with zero emission, or operate outdoors without power supply. It is the preferred lifting machine for contractors doing curtain wall replacement, interior renovation and high-rise rooftop installation. All units are CE and ISO certified, ready for export to Europe, Southeast Asia, Australia and other global markets.
Core Advantages of CSHI 3 Ton Spider Crane
Perfect for Glass Curtain Wall Lifting：Matching vacuum glass suction cup as optional attachment, realizes safe, precise and low-risk glass panel installation. Greatly reduce glass breakage rate during curtain wall construction.
Compact Body for Indoor Access：Narrow crawler chassis can pass through standard building doors and elevators. Rubber track protects marble, tile and finished floor surface without scratches.
Dual Power Flexible Switch：Electric mode for indoor silent construction; diesel mode for outdoor sites without power. Meet different job site requirements.
360° Continuous Rotation + Multi-section Telescopic Boom：Full slewing range with no blind angle, flexible to adjust lifting angle for facade glass installation.
Complete Safety Protection System：Standard torque limiter, height limit, emergency stop button and anti-overturn protection. Optional digital torque display for real-time load monitoring.
Wireless Remote Control：Long-distance wireless remote operation, let operators stay away from hanging loads to improve site safety.

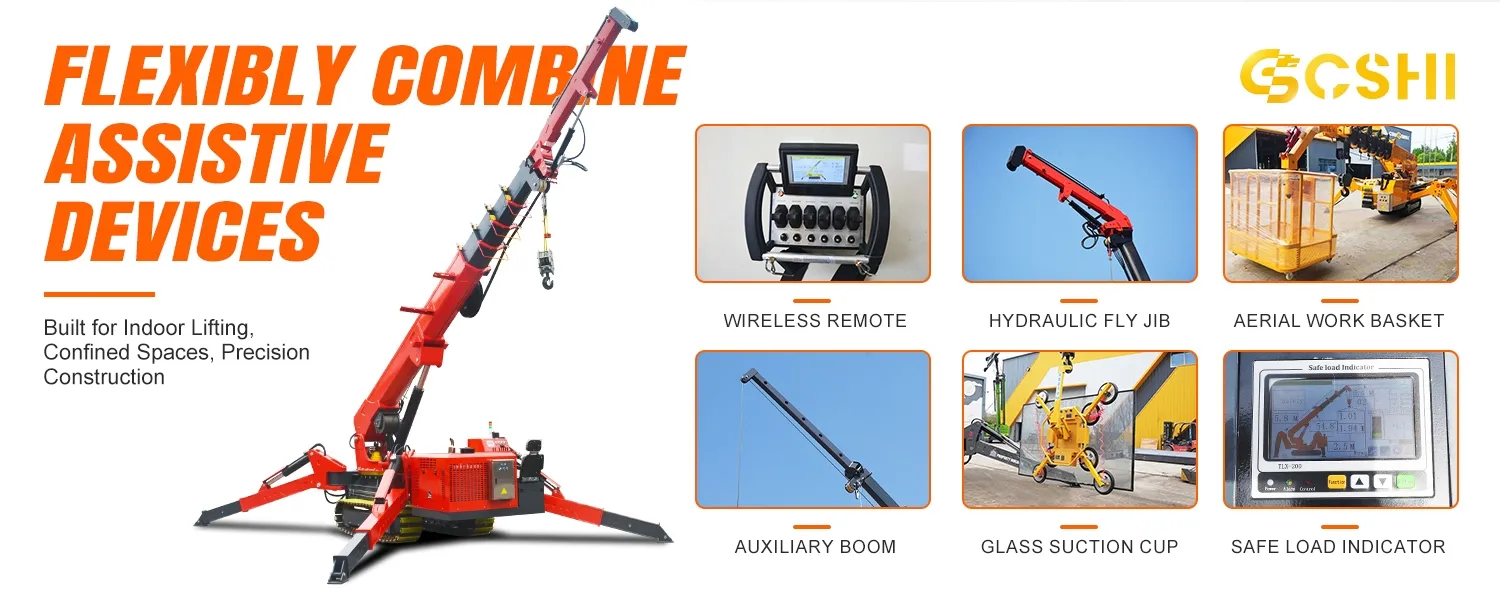

Optional Attachments for 3 Ton Spider Crane
This 3-ton spider crane supports multiple attachments to expand working functions, especially for curtain wall projects:
Vacuum glass suction cup system (the most popular add-on for curtain wall contractors)
Auxiliary jib for extra lifting height
Suspended working platform for high-altitude maintenance
Digital load moment indicator
Proportional hydraulic valve for smoother lifting operation

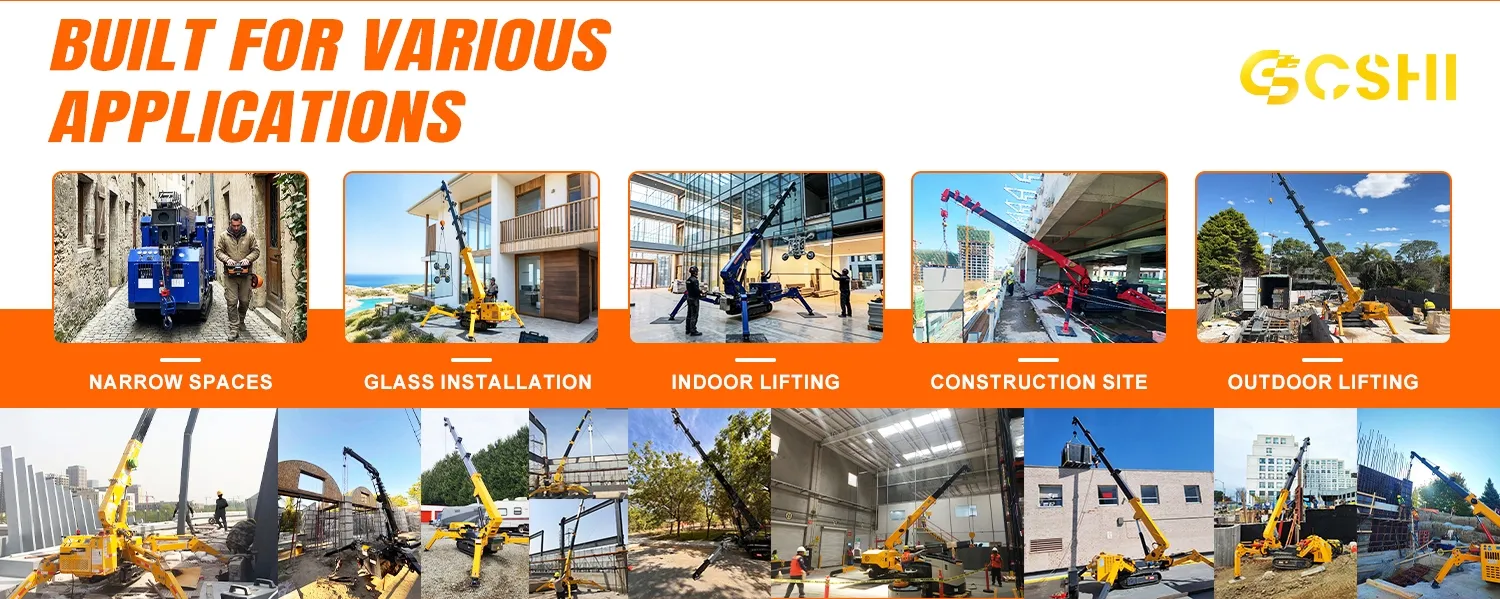

Main Application Scenarios
The 3 ton spider crane is widely used for medium load narrow-space lifting works:
Glass curtain wall installation & glass panel replacement
Interior building renovation, ceiling and heavy material hoisting
Rooftop equipment installation and maintenance
Hotel, mall and museum indoor construction
Small tunnel and underground space maintenance
Facade aluminum panel installation
FAQ for CSHI 3 Ton Spider Crane
Q1: Can the 3 ton spider crane fit inside an elevator?A: Yes. The slim crawler body can enter standard construction elevators, which allows transporting the crane to upper floors for interior curtain wall installation. Rubber tracks protect finished floors.
Q2: Does this 3 ton spider crane work with glass suction cups?A: Absolutely. Vacuum glass suction cup is our most common optional accessory for this 3t model. Many curtain wall contractors pick this combination for facade glass installation.
Q3: What certifications do you have for export?A: Our 3 ton spider crane comes with CE and ISO certificates to satisfy import requirements for most countries. We can provide relevant documents for customs clearance.
Q4: What is your warranty and after-sales service?A: Factory direct supply with 1-year warranty. We supply lifelong spare parts and online video technical guidance. Our engineering team can help you select suitable attachments for your lifting project.
Why Choose CSHI 3 Ton Spider Crane
CSHI is a professional Jining manufacturer specialized in mini spider cranes. Our 3-ton spider crane has been widely adopted by curtain wall installation companies worldwide. We do not only supply lifting equipment, but also provide customized lifting solutions according to your site condition, lifting height and material type.
Contact us now to get free quotation and customized glass lifting solution for your project.

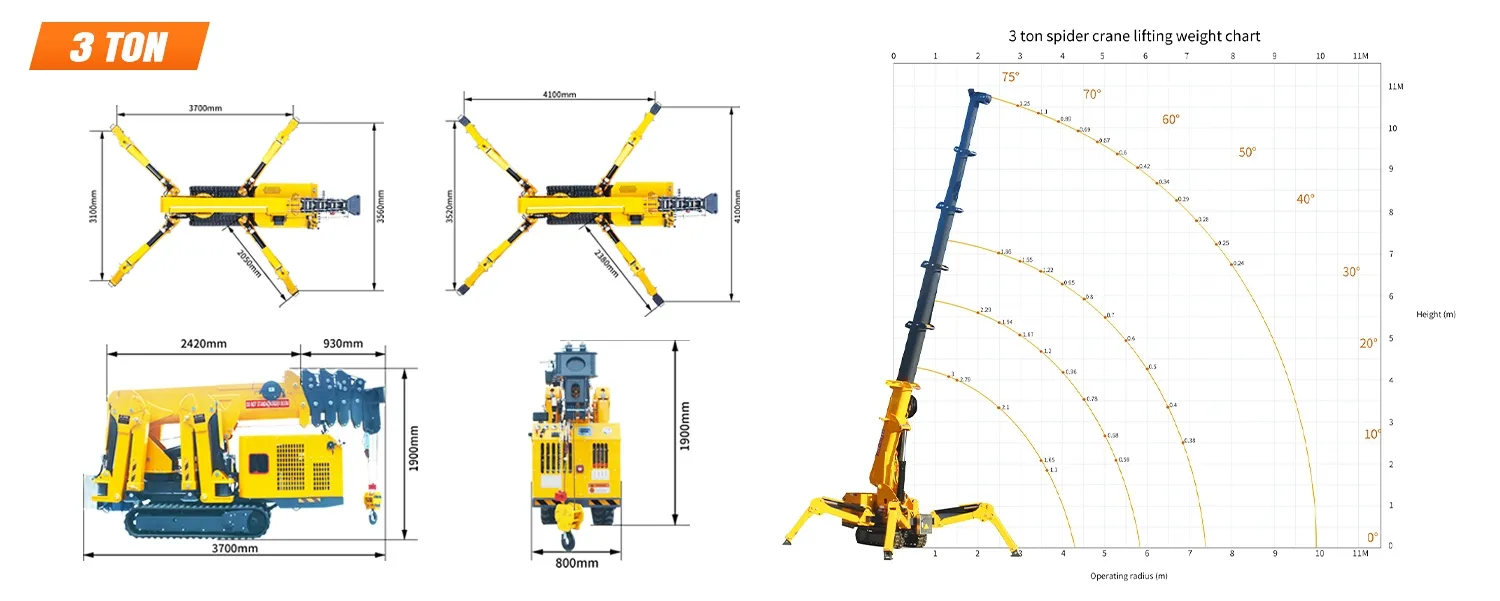

Brand: Changsheng Heavy Industry
Model: CS-3000
Rated Load: 3 ton
Max Lifting Height: 10.8 m
Max Working Radius: 11 m
Overall Size (Folded): L3500 × W800 × H1850 mm
Chassis: Wear-resistant rubber track
Power Option: 380V Electric + Changchai 380G Diesel Dual Power
Operation: Manual control, wireless remote optional
Core Material: High strength manganese steel boom
Applicable Scenarios: Indoor renovation, glass curtain wall, rooftop steel structure lifting, substation maintenance, narrow municipal works, basement equipment hoisting
Certification: ISO, CE, High-tech Enterprise Certificate
Origin: Jining, Shandong, China
Manufacturer: Jining Changsheng Machinery Co., Ltd.
